Description
Specificaties:Voedingsspanning: DC 4.5-6VAfmetingen: 45 x 60 mm
| Onderdeel | Waarde | PCB-markering | Aantal |
| Weerstand | 200Ω | R1 R2 | 6 |
| 10KΩ | R3 R4 | 6 | |
| 47KΩ | R5 R6 | 6 | |
| 510Ω | R7 | 3 | |
| LED | 3mm rood | LED | 3 |
| Elektrolytische condensator | 10µF | C1 | 3 |
| Monolithische condensator | 103 | C2 | 3 |
| Digitale buis | 1-bit 0,56 Gemeenschappelijke kathode | DS1 DS2 | 6 |
| Tact-schakelaar | 6×6 | S2 | 3 |
| Pin header + shorting cap | 3 pin | S1 | 3 |
| Terminal | 2p | J1 | 3 |
| IC | 588.166 | 552.916 | 3 |
| CD4511 | U1 U2 | 6 | |
| CD4011 | 393.717 | 3 | |
| CD4518 | U3 | 3 |
Pakket bevat:

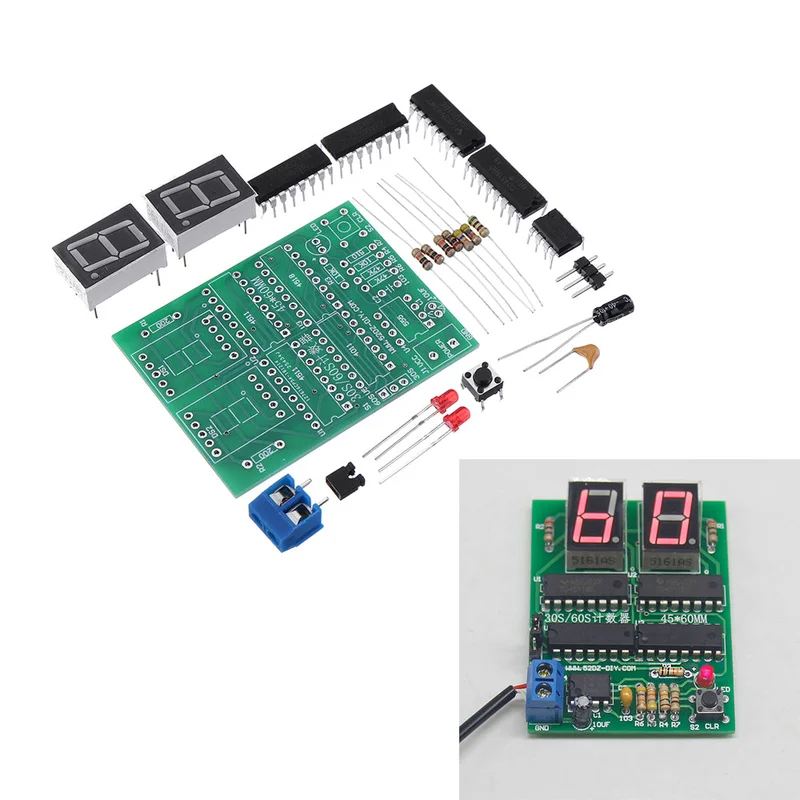

3 x DIY 30-60 seconden timerkit
