Description
Omschrijving:
Afmetingen: 85 x 49 mm
Voeding: 5V

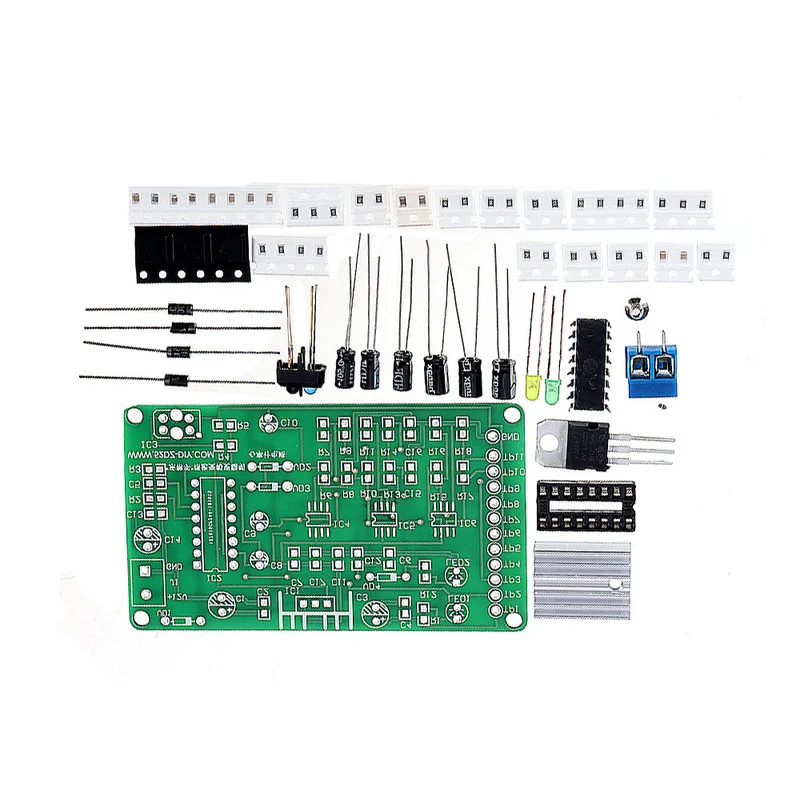

| Naam | Waarde | PCB-markering | Aantal stuks |
| 0805 SMD-weerstand | 1K | R1 R4 R12 | 3 |
| 2K | R8 R11 | 2 | |
| 3K | R6 R9 R16 | 3 | |
| 5.6K | R3 | 1 | |
| 10K | R15 | 1 | |
| 3.9K | R17 | 1 | |
| 3.3K | R18 | 1 | |
| 22K | R5 | 1 | |
| 30K | R13 R14 | 2 | |
| 68K | R2 | 1 | |
| 100K | R7 | 1 | |
| 200K | R10 | 1 | |
| Elektrolytische condensator | 100uF | C1 C3 C14 | 3 |
| 10uF | C8 C9 C10 | 3 | |
| Terminals | 2p | J1 | 1 |
| 0805 SMD-condensator | 102 | C5 | 1 |
| 104 | C2 C4 C6 C7 C11 C12 C13 C17 | 8 | |
| 474 | C15 C16 | 2 | |
| LED diode | 3 MM geel | LED1 | 1 |
| 3 MM groen | LED2 | 1 | |
| Diode | 1N4007 | VD1 VD2 VD3 | 3 |
| 1N5819 | VD4 | 1 | |
| IC | LM7805 | IC1 | 1 |
| CD4049 | IC2 | 1 | |
| Infrarood sensor | TCRT5000 | IC3 | 1 |
| SMD IC | uA741 | IC4 IC5 IC6 | 3 |
| Heatsink | 20 x 15 x 10 mm | 1 | |
| Schroef | M3 x 6 | 1 | |
| IC-aansluiting | 16p | 1 | |
| Printplaat | 1 |
